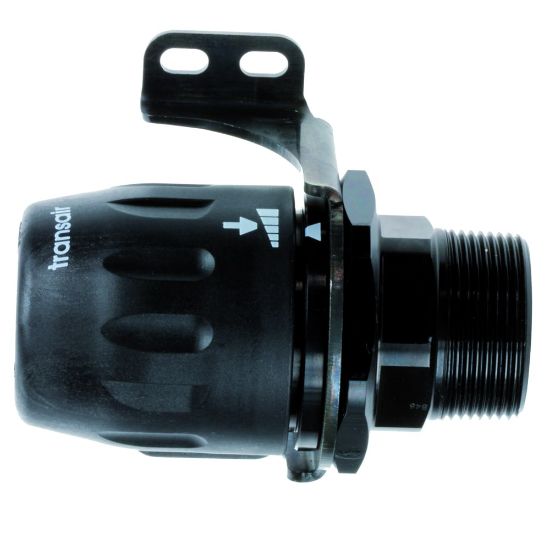

Transair® Fittings for Aluminum Pipe - 6615 50 48

Name: Transair® Fittings for Aluminum Pipe - 6615 50 48
SKU: 6615 50 48

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6615 50 48

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	50	Pipe O.D. (inch)	2
Connection Thread Size (inch)	2	Silicone Free	Yes
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	Transair
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-20 °C	Shape	Straight
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Industry	General Industrial	Application	Industrial Gas
Specifications Met	ASME B31.1 - 31.9	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	232 psi	Technology	Pneumatics
Body Material	Treated Aluminum	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Quantity per Box	1
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Connection 1 Size	2 inch	Connection 2 Size	R 2 inch
Connection 2 Type	Male BSPT	Weight	0.801 kg
Product Style	Stud Fitting with Fixing Plate
