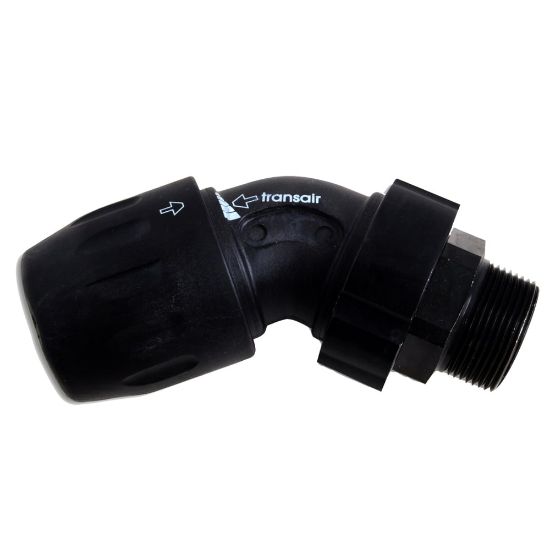

Transair® Fittings for Aluminum Pipe - 6619 25 21

Name: Transair® Fittings for Aluminum Pipe - 6619 25 21
SKU: 6619 25 21

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6619 25 21

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	25	Pipe O.D. (inch)	1
Silicone Free	Yes	Connection Thread Size (inch)	1/2
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-4 °F	Division	Low Pressure Connectors Europe Division
Industry	General Industrial	Technology	Fluid & Gas Handling
Specifications Met	EN 755.2	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Maximum Operating Temperature	185 °F
Body Material	Treated Aluminum	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Shape	Elbow 45°
Quantity per Box	2	Application	Inert Gas
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Product Style	Stud Fitting	Connection 1 Size	25 mm
Connection 2 Type	Male BSPT	Weight	0.0 lb
Connection 2 Size	R /2 inch
