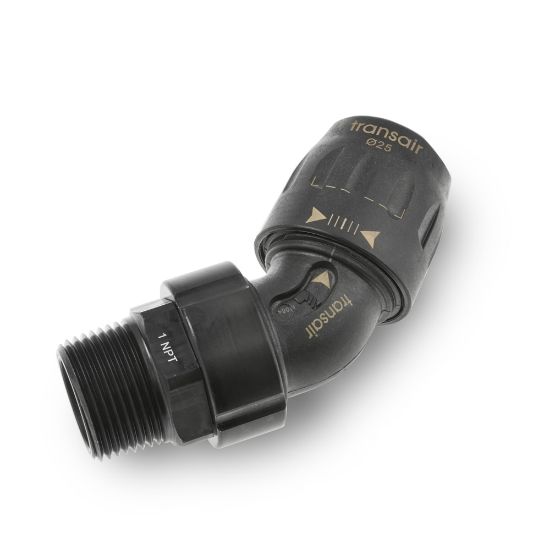

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Fittings for Aluminum Pipe - 6619 40 35

Name: Transair® Fittings for Aluminum Pipe - 6619 40 35
SKU: 6619 40 35

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6619 40 35

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	40	Pipe O.D. (inch)	1-1/2
Connection Thread Size (inch)	1	Silicone Free	Yes
Product Style	Male NPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Division	Fluid System Connectors Division	Industry	General Industrial
Application	Vacuum	Specifications Met	ASME B31.1 - 31.9
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Technology	Pneumatics	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Quantity per Box	1
Shape	Elbow 45°	Body Material	Technical Polymer
Connection 2 Type	Male NPT	Connection 2 Size	1 inch
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Product Style	Stud Fitting	Connection 1 Size	1-1/2 inch
Weight	0.607 kg
