*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

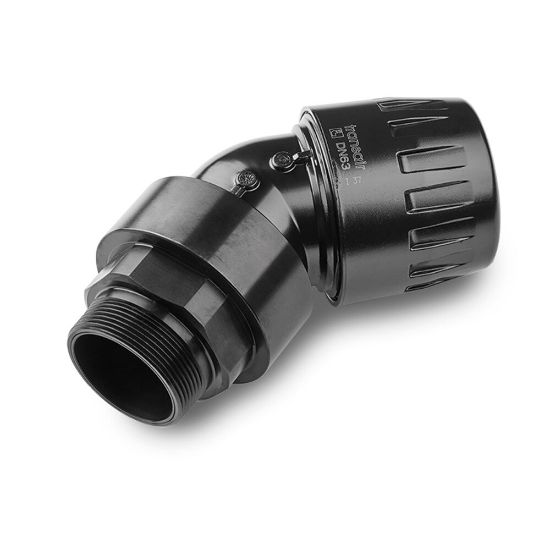

Transair® Fittings for Aluminum Pipe - 6619 50 50

Name: Transair® Fittings for Aluminum Pipe - 6619 50 50
SKU: 6619 50 50

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6619 50 50

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	50	Pipe O.D. (inch)	2
Silicone Free	Yes	Connection Thread Size (inch)	1-1/2
Product Style	Male NPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Division	Fluid System Connectors Division	Industry	General Industrial
Technology	Fluid & Gas Handling	Specifications Met	EN 755.8
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Body Material	Treated Aluminum	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Shape	Elbow 45°	Connection 2 Type	Male NPT
Connection 1 Size	50 mm	Connection 2 Size	1-1/2 inch
Application	Inert Gas	Assembly Time	0.17 Hours
Configuration	Pipe to Port	Product Style	Stud Fitting
Weight	1.288 kg

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials
