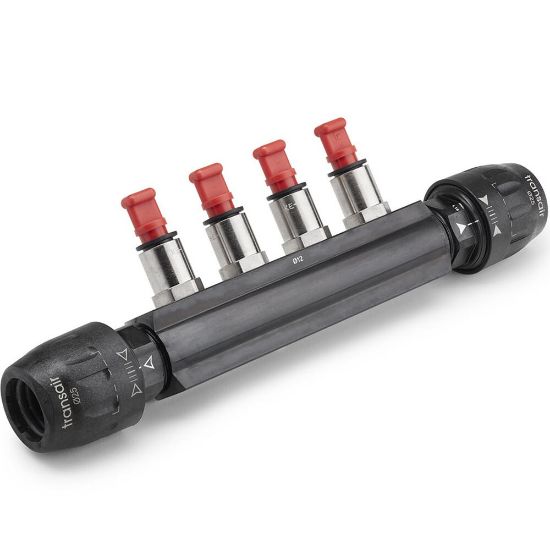

Transair® Fittings for Aluminum Pipe - 6651 25 12 04

Name: Transair® Fittings for Aluminum Pipe - 6651 25 12 04
SKU: 6651 25 12 04

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6651 25 12 04

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	25	Pipe O.D. (inch)	1
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-20 °C	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Industry	General Industrial
Application	Industrial Gas	Specifications Met	CE 2014/68/EU
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	232 psi
Technology	Pneumatics	Assembly Time	0.04 Hours
Configuration	Pipe to Pipe	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Connection 2 Type	Pipe	Body Material	Treated Brass
Connection 1 Size	1 inch	Connection 2 Size	25 mm
Shape	4 Port Straight	Weight	1.045 kg
Product Style	Manifold
