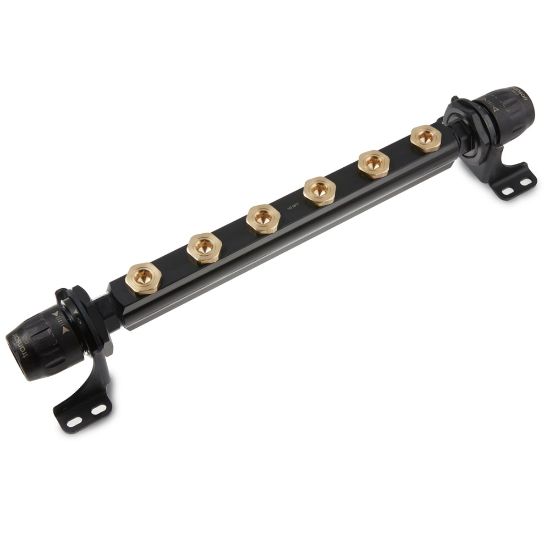

Transair® Fittings for Aluminum Pipe - 6653 25 22 06

Name: Transair® Fittings for Aluminum Pipe - 6653 25 22 06
SKU: 6653 25 22 06

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6653 25 22 06

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	25	Pipe O.D. (inch)	1
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Division	Fluid System Connectors Division	Industry	General Industrial
Technology	Fluid & Gas Handling	Specifications Met	EN 755.8
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Assembly Time	0.04 Hours	Configuration	Pipe to Pipe
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Quantity per Box	1	Connection 2 Type	Pipe
Body Material	Treated Brass	Connection 1 Size	1 inch
Application	Inert Gas	Connection 2 Size	25 mm
Shape	6 Port Straight	Weight	5.07 lb
Product Style	Manifold
