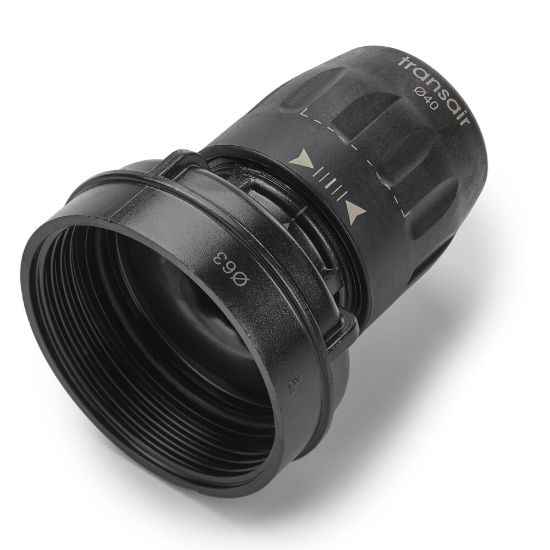

Picture of Transair® Fittings for Aluminum Pipe - 6666 40 50

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Fittings for Aluminum Pipe - 6666 40 50

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.
Availability:
Backordered
SKU 6666 40 50
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pipe O.D. (mm)40Pipe O.D. (inch)1-1/2
Connection Thread Size (inch)n/aSilicone FreeYes
Product StylePipePipe O.D. 2 (mm)50
Pipe O.D. 2 (inch)2BrandTransair
Product TypeCompressed Air PipingMinimum Operating Temperature-4 °F
DivisionLow Pressure Connectors Europe DivisionDivisionFluid System Connectors Division
IndustryGeneral IndustrialApplicationCompressed Air
Specifications MetEN 573.3Vacuum Pressure Rating0.03 inch-Hg
Maximum Operating Pressure232 psiMaximum Operating Temperature185 °F
TechnologyPneumaticsFor Fluid TypeAir
Connection 1 TypePipeQuantity per Box1
Connection 2 TypePipeBody MaterialTechnical Polymer
Assembly Time0.06 HoursConnection 1 Size40 mm
Connection 2 Size2 inchShapePlug-In Reducer
Weight0.7 lbConfigurationPipe to Swivel Port
Product StylePlug-in Fitting
