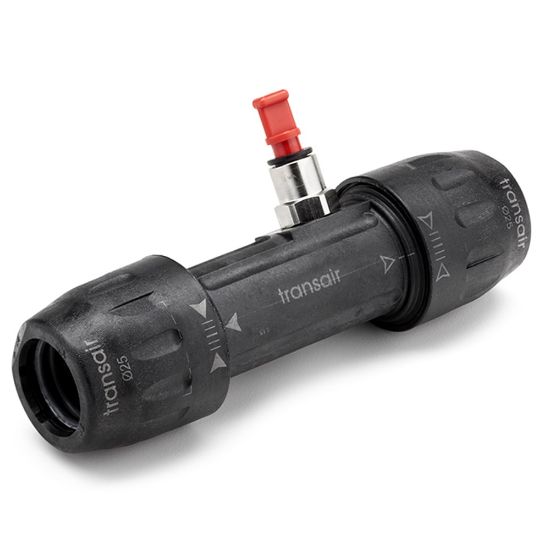

Transair® Fittings for Aluminum Pipe - 6676 40 00

Name: Transair® Fittings for Aluminum Pipe - 6676 40 00
SKU: 6676 40 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6676 40 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	40	Pipe O.D. (inch)	1-1/2
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	Transair
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Division	Low Pressure Connectors Europe Division	Division	Fluid System Connectors Division
Industry	General Industrial	Application	Industrial Gas
Specifications Met	ISO 8573 (Air Quality)	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Pressure	232 psi	Maximum Operating Temperature	185 °F
Technology	Pneumatics	Assembly Time	0.04 Hours
Configuration	Pipe to Pipe	Quantity per Box	5
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Connection 2 Type	Pipe	Body Material	Technical Polymer
Connection 1 Size	40 mm	Connection 2 Size	40 mm
Product Style	Union Fitting	Shape	Vented Straight
Weight	0.71 lb
