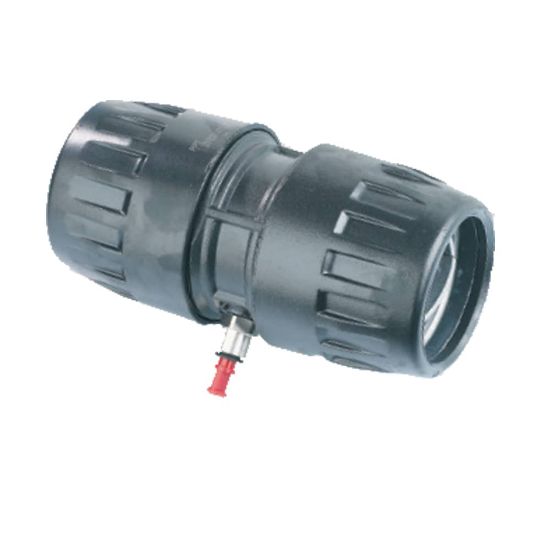

Transair® Fittings for Aluminum Pipe - 6676 63 00

Name: Transair® Fittings for Aluminum Pipe - 6676 63 00
SKU: 6676 63 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6676 63 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	63	Pipe O.D. (inch)	2-1/2
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	Transair
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-4 °F	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Specifications Met	EN 755.8
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Connection 2 Type	Pipe	Assembly Time	0.06 Hours
Connection 1 Size	2-1/2 inch	Application	Inert Gas
Product Style	Union Fitting	Connection 2 Size	63 mm
Shape	Vented Straight	Weight	0.87 kg
Quantity per Box	3
