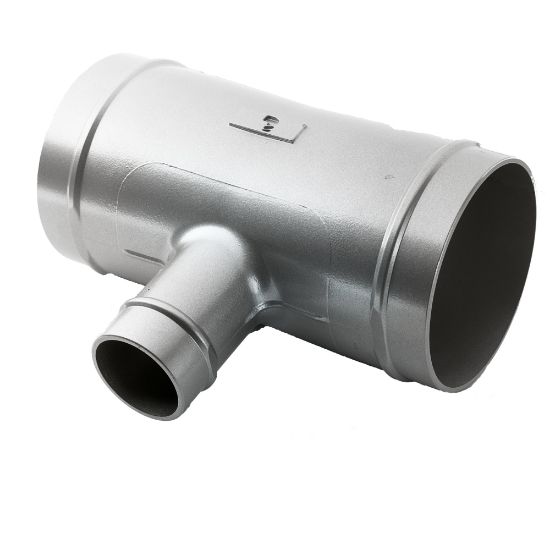

Transair® Fittings for Aluminum Pipe - RA04 L8 L1

Name: Transair® Fittings for Aluminum Pipe - RA04 L8 L1
SKU: RA04 L8 L1

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA04 L8 L1

POR

Qty:

Products specifications

Attribute name	Attribute value
Product Style	Pipe	Silicone Free	Yes
Pipe O.D. (inch)	6	Connection Thread Size (inch)	n/a
Pipe O.D. 2 (mm)	76	Pipe O.D. 2 (inch)	3
Pipe O.D. (mm)	168	Configuration	Pipe to Pipe
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	185 °F
Connection 2 Size	76 mm	Product Type	Compressed Air Piping
Assembly Time	0.04 Hours	For Fluid Type	Industrial Gas
Technology	Fluid & Gas Handling	Brand	Transair
Connection 2 Type	Pipe	Minimum Operating Temperature	-4 °F
Product Style	Union Fitting	Connection 1 Type	Pipe
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Application	Vacuum	Shape	Reducing Tee
Body Material	Treated Aluminum	Connection 1 Size	6 inch
Specifications Met	TUV	Weight	6.94 lb
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	188 psi
Industry	General Industrial
