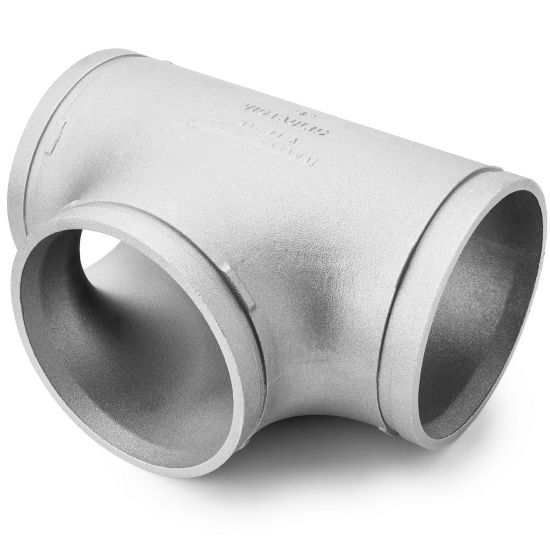

Transair® Fittings for Aluminum Pipe - RA04 V1200-SF

Name: Transair® Fittings for Aluminum Pipe - RA04 V1200-SF
SKU: RA04 V1200-SF

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA04 V1200-SF

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. 2 (mm)	N/A	Pipe O.D. (mm)	220
Silicone Free	Yes	Product Style	Pipe
Connection Thread Size (inch)	n/a	Pipe O.D. (inch)	8
Pipe O.D. 2 (inch)	N/A	Division	Fluid System Connectors Division
For Fluid Type	Air	Application	Compressed Air
Shape	Equal Tee	Weight	8.346 kg
Body Material	Treated Aluminum	Vacuum Pressure Rating	0.03 inch-Hg
Connection 2 Size	8 inch	Industry	General Industrial
Configuration	Pipe to Pipe	Assembly Time	0.66 Hours
Division	Fluid System Connectors Division	Maximum Operating Temperature	185 °F
Product Type	Compressed Air Piping	Technology	Pneumatics
Brand	Transair	Connection 2 Type	Pipe
Minimum Operating Temperature	-4 °F	Product Style	Union Fitting
Maximum Operating Pressure	10 bar 150 PSI (-4° to +140°F)/10 bar (-20°C to 60°C) For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html	Connection 1 Size	220 mm
Quantity per Box	1	Specifications Met	ASME B31.1 - 31.3
Connection 1 Type	Pipe
