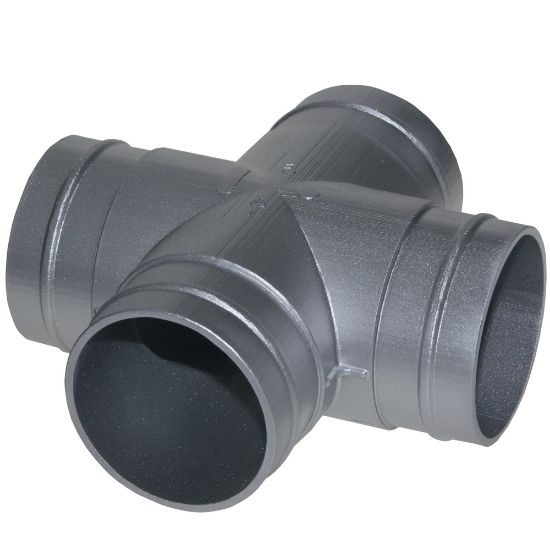

Transair® Fittings for Aluminum Pipe - RA07 63 00

Name: Transair® Fittings for Aluminum Pipe - RA07 63 00
SKU: RA07 63 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA07 63 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Product Style	Flange	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (inch)	2-1/2	Silicone Free	Yes
Pipe O.D. 2 (mm)	N/A	Pipe O.D. (mm)	63
Connection Thread Size (inch)	n/a	Connection 2 Type	Flange
Specifications Met	ISO 8573 (Air Quality)	Shape	Equal Cross
Product Style	Union Fitting	Connection 1 Size	2-1/2 inch
Application	Vacuum	Connection 2 Size	63 mm
Connection 1 Type	Pipe	Maximum Operating Temperature	85 °C
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Body Material	Treated Aluminum	Industry	General Industrial
Assembly Time	0.09 Hours	Configuration	Pipe to Pipe
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Division	Low Pressure Connectors Europe Division
Minimum Operating Temperature	-20 °C	Product Type	Compressed Air Piping
Technology	Fluid & Gas Handling	Vacuum Pressure Rating	1 mbar
For Fluid Type	Industrial Gas	Weight	1.932 kg
Brand	Transair
