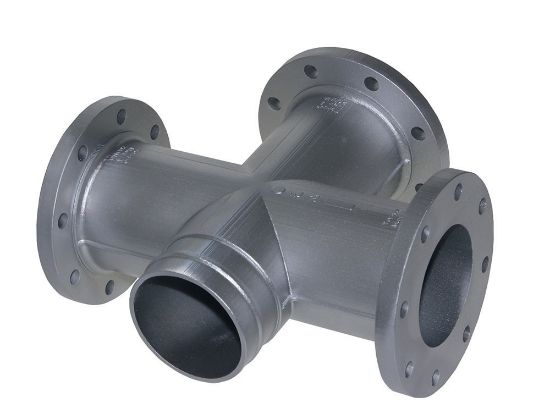

Picture of Transair® Fittings for Aluminum Pipe - RA07 L3 03 46

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Fittings for Aluminum Pipe - RA07 L3 03 46

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.
Availability:
Backordered
SKU RA07 L3 03 46
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Silicone FreeYesPipe O.D. 2 (mm)N/A
Connection Thread Size (inch)n/aPipe O.D. 2 (inch)N/A
Pipe O.D. (inch)4Product StyleFlange
Pipe O.D. (mm)100Weight12.269 kg
DivisionFluid System Connectors DivisionMaximum Operating Pressure16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
DivisionLow Pressure Connectors Europe DivisionProduct TypeCompressed Air Piping
TechnologyFluid & Gas HandlingApplicationInert Gas
BrandTransairShape3 Flanged ANSI Cross
Product StyleFlange FittingConnection 1 TypePipe
Maximum Operating Temperature85 °CSpecifications MetEN 755.8
Connection 2 TypeFlangeQuantity per Box1
Body MaterialTreated AluminumConnection 1 Size4 inch
For Fluid TypeAirConfigurationPipe to Flange
Connection 2 Size9.06 inchVacuum Pressure Rating0.03 inch-Hg
Assembly Time0.3 HoursMinimum Operating Temperature-4 °F
IndustryGeneral Industrial
