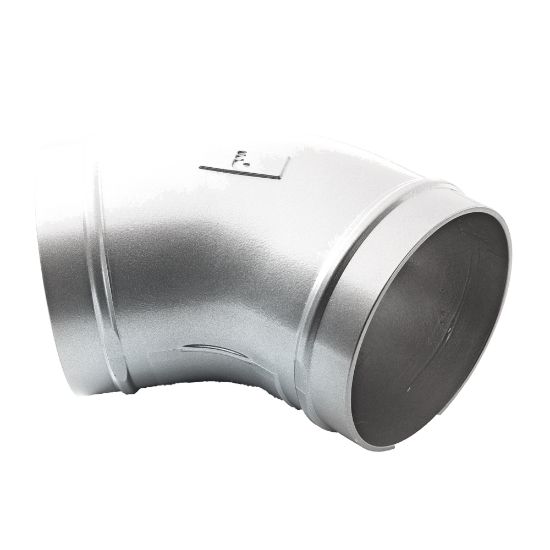

Transair® Fittings for Aluminum Pipe - RA12 L8 00

Name: Transair® Fittings for Aluminum Pipe - RA12 L8 00
SKU: RA12 L8 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA12 L8 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection Thread Size (inch)	n/a	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (mm)	168	Pipe O.D. 2 (mm)	N/A
Pipe O.D. (inch)	6	Silicone Free	Yes
Product Style	Pipe	Assembly Time	0.02 Hours
Connection 2 Type	Pipe	Product Type	Compressed Air Piping
Technology	Pneumatics	Industry	General Industrial
Minimum Operating Temperature	-4 °F	Weight	2.366 kg
Connection 2 Size	6 inch	Product Style	Union Fitting
Vacuum Pressure Rating	0.03 inch-Hg	Brand	PARKER
Quantity per Box	1	Specifications Met	EN 755.2
Connection 1 Type	Pipe	Shape	Elbow 45°
For Fluid Type	Air	Body Material	Treated Aluminum
Application	Compressed Air	Maximum Operating Pressure	188 psi
Configuration	Pipe to Pipe	Connection 1 Size	168 mm
Maximum Operating Temperature	185 °F	Division	Fluid System Connectors Division
Division	Low Pressure Connectors Europe Division
