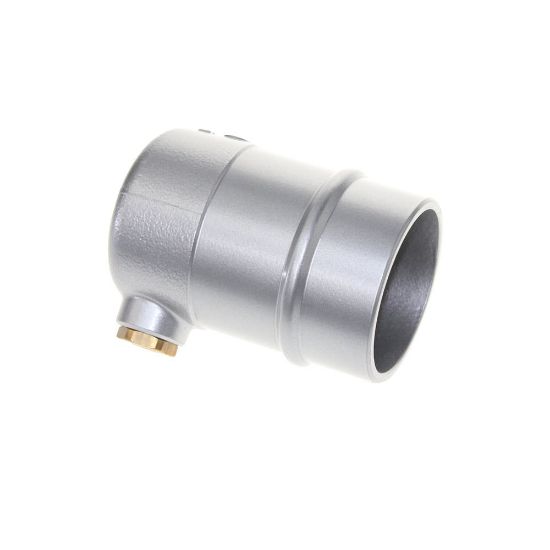

Transair® Fittings for Aluminum Pipe - RA25 L1 04

Name: Transair® Fittings for Aluminum Pipe - RA25 L1 04
SKU: RA25 L1 04

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA25 L1 04

POR

Qty:

Products specifications

Attribute name	Attribute value
Product Style	Pipe	Silicone Free	Yes
Connection Thread Size (inch)	n/a	Pipe O.D. (mm)	76
Pipe O.D. 2 (inch)	N/A	Pipe O.D. (inch)	3
Pipe O.D. 2 (mm)	N/A	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Connection 1 Size	3 inch	Connection 2 Type	N/A
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Assembly Time	0.02 Hours	Technology	Fluid & Gas Handling
Application	Inert Gas	Product Type	Compressed Air Piping
Weight	1.41 lb	Configuration	Pipe to End
Product Style	Union Fitting	Quantity per Box	1
Maximum Operating Temperature	85 °C	Division	Low Pressure Connectors Europe Division
Brand	PARKER	Connection 1 Type	Pipe
Connection 2 Size	n/a inch	For Fluid Type	Air
Body Material	Treated Aluminum	Specifications Met	ISO 9001
Shape	End Cap with plug	Industry	General Industrial
Vacuum Pressure Rating	0.03 inch-Hg
