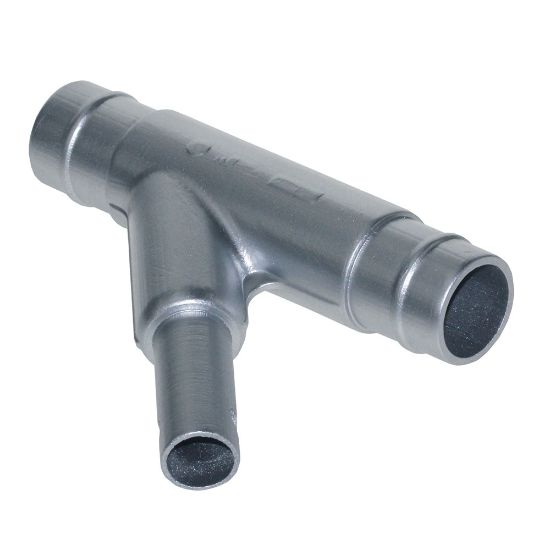

Transair® Fittings for Aluminum Pipe - RA26 L3 L1

Name: Transair® Fittings for Aluminum Pipe - RA26 L3 L1
SKU: RA26 L3 L1

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA26 L3 L1

POR

Qty:

Products specifications

Attribute name	Attribute value
Product Style	Pipe	Silicone Free	Yes
Connection Thread Size (inch)	n/a	Pipe O.D. 2 (mm)	76
Pipe O.D. 2 (inch)	3	Pipe O.D. (inch)	4
Pipe O.D. (mm)	100	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Product Type	Compressed Air Piping	Assembly Time	0.02 Hours
Vacuum Pressure Rating	1 mbar	Technology	Fluid & Gas Handling
Connection 2 Type	Pipe	Configuration	Pipe to Pipe
For Fluid Type	Industrial Gas	Application	Vacuum
Connection 1 Type	Pipe	Product Style	Union Fitting
Specifications Met	EN 755.8	Weight	3.265 kg
Maximum Operating Temperature	85 °C	Connection 2 Size	76 mm
Division	Low Pressure Connectors Europe Division	Brand	PARKER
Quantity per Box	1	Shape	Reducing Wye
Connection 1 Size	4 inch	Body Material	Treated Aluminum
Industry	General Industrial
