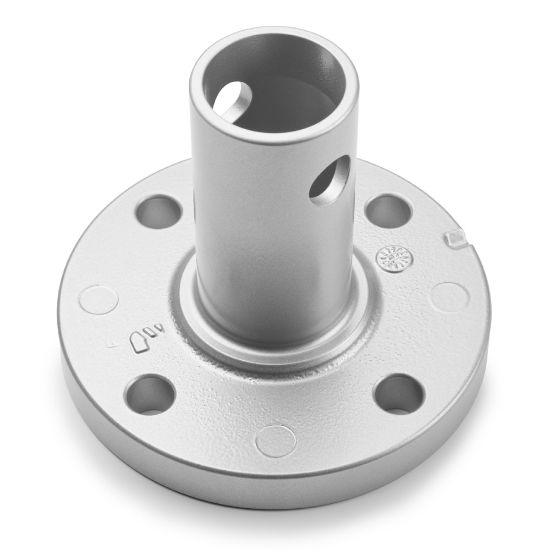

Transair® Fittings for Aluminum Pipe - RA31 63 00

Name: Transair® Fittings for Aluminum Pipe - RA31 63 00
SKU: RA31 63 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA31 63 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Silicone Free	Yes	Pipe O.D. (mm)	63
Connection Thread Size (inch)	n/a	Product Style	Flange
Pipe O.D. 2 (inch)	N/A	Pipe O.D. 2 (mm)	N/A
Pipe O.D. (inch)	2-1/2	Weight	1.773 kg
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Minimum Operating Temperature	-20 °C
Division	Fluid System Connectors Division	Division	Low Pressure Connectors Europe Division
Assembly Time	0.25 Hours	Product Type	Compressed Air Piping
Vacuum Pressure Rating	1 mbar	Brand	Transair
Specifications Met	ASME B31.1 - 31.9	Technology	Fluid & Gas Handling
Application	Vacuum	Configuration	Pipe to Flange
Connection 2 Type	Flange	Connection 1 Type	Pipe
Quantity per Box	1	Maximum Operating Temperature	85 °C
Product Style	ANSI Flange Adapter	Connection 1 Size	2-1/2 inch
Connection 2 Size	63 mm	Body Material	Treated Aluminum
Shape	Straight	For Fluid Type	Air
Industry	General Industrial
