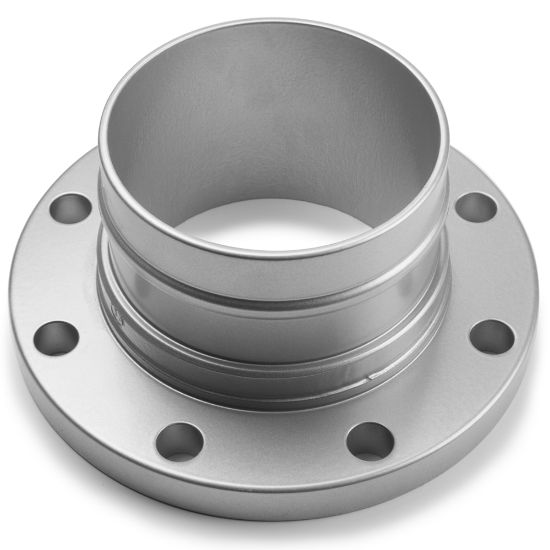

Transair® Fittings for Aluminum Pipe - RA31 L8 00

Name: Transair® Fittings for Aluminum Pipe - RA31 L8 00
SKU: RA31 L8 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA31 L8 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Silicone Free	Yes	Pipe O.D. (inch)	6
Pipe O.D. 2 (mm)	N/A	Connection Thread Size (inch)	n/a
Pipe O.D. (mm)	168	Product Style	Flange
Pipe O.D. 2 (inch)	N/A	Body Material	Treated Aluminum
Shape	Straight	Application	Compressed Air
For Fluid Type	Air	Maximum Operating Pressure	188 psi
Industry	General Industrial	Configuration	Pipe to Flange
Weight	7.56 lb	Connection 1 Size	168 mm
Minimum Operating Temperature	-20 °C	Maximum Operating Temperature	185 °F
Assembly Time	0.25 Hours	Division	Fluid System Connectors Division
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Vacuum Pressure Rating	1 mbar	Brand	Transair
Technology	Pneumatics	Connection 2 Type	Flange
Connection 1 Type	Pipe	Product Style	ANSI Flange Adapter
Quantity per Box	1	Connection 2 Size	168 mm
Specifications Met	EN 755.2
