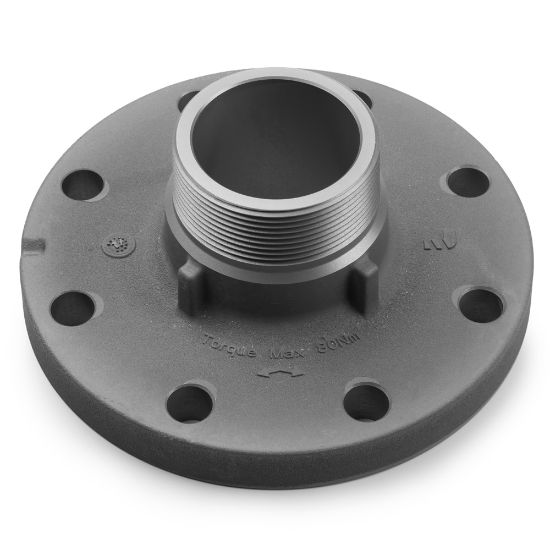

Transair® Fittings for Aluminum Pipe - RA33 L3 24

Name: Transair® Fittings for Aluminum Pipe - RA33 L3 24
SKU: RA33 L3 24

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RA33 L3 24

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection Thread Size (inch)	3	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (inch)	4	Product Style	Flange
Pipe O.D. (mm)	100	Silicone Free	Yes
Pipe O.D. 2 (mm)	N/A	Connection 2 Size	4 inch
Technology	Fluid & Gas Handling	Vacuum Pressure Rating	1 mbar
Product Type	Compressed Air Piping	For Fluid Type	Industrial Gas
Brand	Transair	Configuration	Port to Flange
Connection 1 Type	Pipe	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-4 °F	Connection 2 Type	Flange
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Maximum Operating Pressure	232 psi	Product Style	ISO Flange Adapter
Shape	Straight	Body Material	Treated Aluminum
Connection 1 Size	4 inch	Industry	General Industrial
Assembly Time	0.25 Hours	Weight	2.133 kg
Application	Compressed Air	Division	Low Pressure Connectors Europe Division
Specifications Met	EN 573.3
