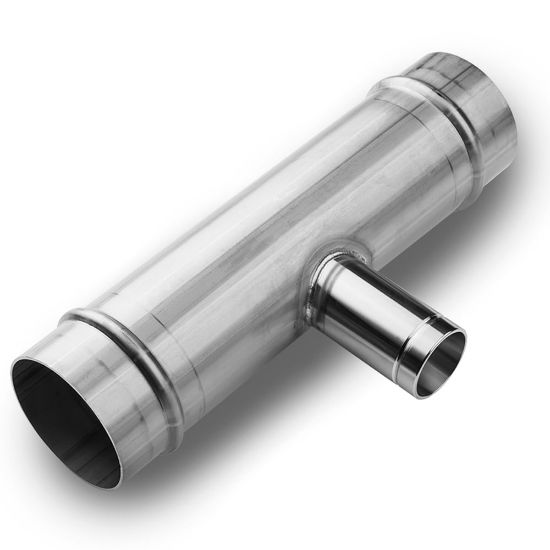

Transair® Fittings for Aluminum Pipe - RX24 L3 40

Name: Transair® Fittings for Aluminum Pipe - RX24 L3 40
SKU: RX24 L3 40

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU RX24 L3 40

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (inch)	4	Connection Thread Size (inch)	n/a
Silicone Free	Yes	Product Style	Pipe
Pipe O.D. 2 (mm)	63	Pipe O.D. 2 (inch)	1-1/2
Pipe O.D. (mm)	100	Quantity per Box	1
Brand	PARKER	Shape	Reducing Tee
Weight	3.46 lb	Technology	Pneumatics
Body Material	Stainless Steel 304	Product Type	Compressed Air Piping
Assembly Time	0.04 Hours	Connection 2 Type	Pipe
Configuration	Pipe to Pipe	For Fluid Type	Industrial Gas
Division	Fluid System Connectors Division	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Application	Compressed Air	Specifications Met	EN 573.3
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Connection 1 Size	4 inch	Connection 2 Size	1-1/2 inch
Vacuum Pressure Rating	0.03 inch-Hg	Industry	General Industrial
Connection 1 Type	Pipe	Maximum Operating Temperature	85 °C
Product Style	Union Fitting
