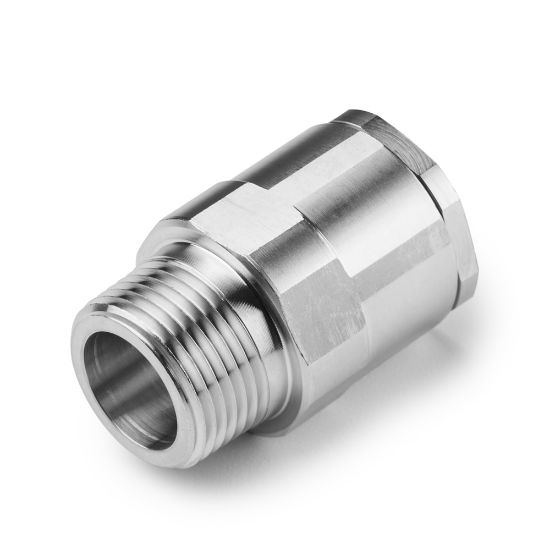

Transair® Fittings for Stainless Steel Pipe - RF08 N7 06 02

Name: Transair® Fittings for Stainless Steel Pipe - RF08 N7 06 02
SKU: RF08 N7 06 02

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:

Backordered

SKU RF08 N7 06 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	22	Seal Material	FKM
Shape	316L Stainless Male BSP Adapter	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (inch)	3/4	Connection Thread Size (inch)	3/4
Pipe O.D. 2 (mm)	N/A	Maximum Operating Temperature	194 °F
Vacuum Pressure Rating	0.03 inch-Hg	Connection 2 Size	3/4 inch
Minimum Operating Temperature	-4 °F	Connection 1 Type	Pipe
Division	Low Pressure Connectors Europe Division	Pipe Outside Diameter	22 mm
Product Type	Compressed Air Piping	Connection 1 Size	22 mm
Assembly Time	0.17 Hours	Brand	Transair
Product Style	Stud Fitting	Application	Process Water
Connection 2 Type	Male BSPT	Quantity per Box	1.0
Configuration	Pipe to Port	Maximum Operating Pressure	10 bar
Weight	0.12 kg	Shape	Straight
Division	Fluid System Connectors Division

Product resources

Literature and Reference Materials

Transair Master Catalog (PDF)

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
