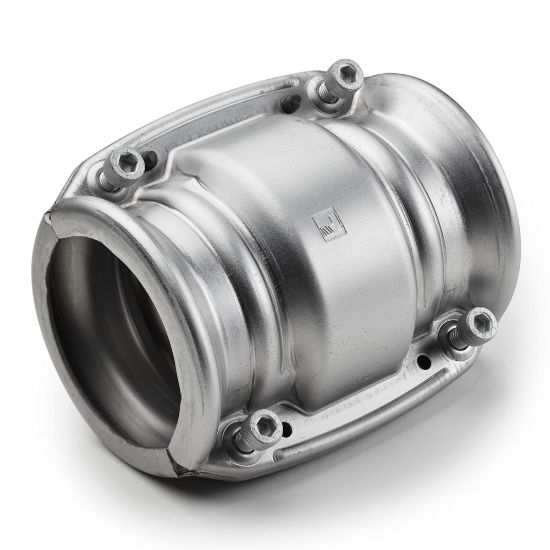

Transair® Fittings for Stainless Steel Pipe - RR01 L3 01

Name: Transair® Fittings for Stainless Steel Pipe - RR01 L3 01
SKU: RR01 L3 01

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:

Backordered

SKU RR01 L3 01

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. 2 (mm)	N/A	Pipe O.D. (mm)	101
Shape	Union	Seal Material	EPDM
Pipe O.D. 2 (inch)	N/A	Pipe O.D. (inch)	4
Connection Thread Size (inch)	n/a	Application	Inert Gases
Configuration	Pipe to Pipe	Body Material	Treated Steel
Brand	Transair	Minimum Operating Temperature	-20 °C
Quantity per Box	6.0	Maximum Operating Pressure	10 bar
Weight	1.48 kg	Division	Fluid System Connectors Division
Connection 1 Size	4 inch	Shape	Straight
Product Style	Union Fitting	Assembly Time	0.15 Hours
Industry	General Industrial	Seal Material	EPDM
Connection 1 Type	Pipe	Specifications Met	EN 755.8
Maximum Operating Temperature	90 °C	Division	Low Pressure Connectors Europe Division
Product Type	Union Fitting	Vacuum Pressure Rating	1 mbar
For Fluid Type	Industrial Gas	Connection 2 Size	4 inch
Technology	Fluid & Gas Handling	Connection 2 Type	Pipe
