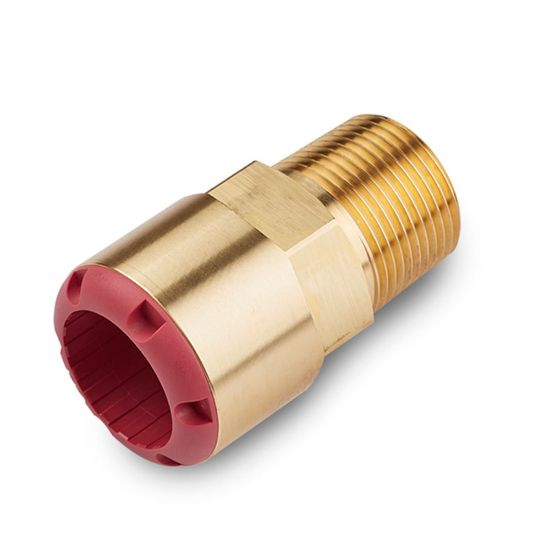

Picture of Transair® Fittings for Stainless Steel Pipe - RR05 N7N06 02

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Fittings for Stainless Steel Pipe - RR05 N7N06 02

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.
Availability:
Backordered
SKU RR05 N7N06 02
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pipe O.D. (inch)3/4Connection Thread Size (inch)3/4
Pipe O.D. 2 (mm)N/APipe O.D. (mm)22
ShapeTransair Female to Male NPT AdapterSeal MaterialFKM
Pipe O.D. 2 (inch)N/ADivisionLow Pressure Connectors Europe Division
Connection 2 TypeMale NPTConnection 1 Size22 mm
Assembly Time0.17 HoursMaximum Operating Pressure145 psi
Pipe Outside Diameter22 mmProduct TypeCompressed Air Piping
Product StyleStud FittingBrandTransair
ApplicationInert GasesMinimum Operating Temperature-20 °C
Weight0.50 lbConfigurationPipe to Port
Quantity per Box2.0Maximum Operating Temperature194 °F
ShapeStraightDivisionFluid System Connectors Division
Vacuum Pressure Rating0.03 inch-HgConnection 1 TypePipe
Connection 2 Size3/4 inchSeal MaterialFKM
