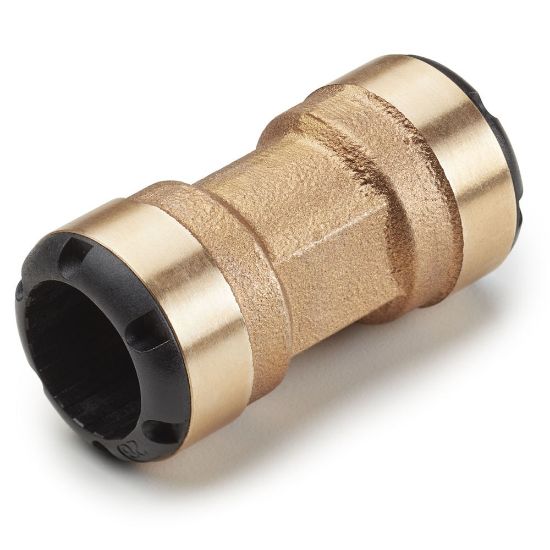

Transair® Fittings for Stainless Steel Pipe - RR06 N7 01

Name: Transair® Fittings for Stainless Steel Pipe - RR06 N7 01
SKU: RR06 N7 01

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:

Backordered

SKU RR06 N7 01

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (inch)	3/4	Connection Thread Size (inch)	n/a
Pipe O.D. 2 (mm)	N/A	Shape	Union
Pipe O.D. (mm)	22	Seal Material	EPDM
Pipe O.D. 2 (inch)	N/A	Maximum Operating Pressure	145 psi
Pipe Outside Diameter	22 mm	Connection 2 Type	Pipe
Assembly Time	0.04 Hours	Configuration	Pipe to Pipe
Weight	0.28 lb	Brand	Transair
Quantity per Box	5.0	Application	Chemical Transfer
Division	Fluid System Connectors Division	Maximum Operating Temperature	194 °F
Shape	Straight	Minimum Operating Temperature	-4 °F
Product Style	Union Fitting	Vacuum Pressure Rating	0.03 inch-Hg
Connection 1 Size	3/4 inch	Seal Material	EPDM
Connection 1 Type	Pipe	Connection 2 Size	3/4 inch
Product Type	Union Fitting	Division	Low Pressure Connectors Europe Division

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
