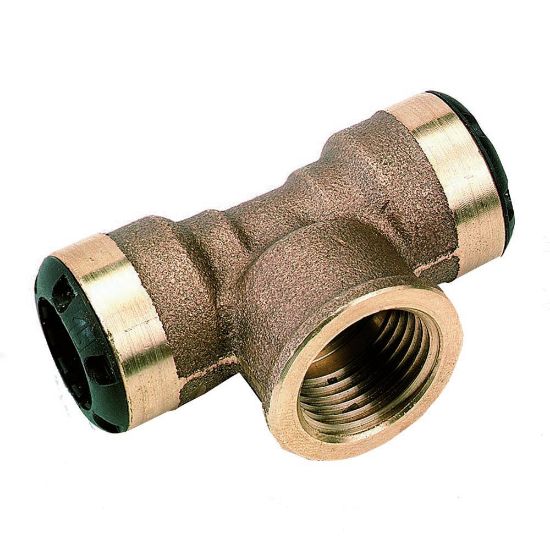

Transair® Fittings for Stainless Steel Pipe - RR23 N7 06 01

Name: Transair® Fittings for Stainless Steel Pipe - RR23 N7 06 01
SKU: RR23 N7 06 01

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:

Backordered

SKU RR23 N7 06 01

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (inch)	3/4	Shape	Female BSP Tee
Connection Thread Size (inch)	3/4	Pipe O.D. 2 (mm)	N/A
Seal Material	EPDM	Pipe O.D. (mm)	22
Pipe O.D. 2 (inch)	N/A	Connection 2 Type	Pipe
Application	Industrial Gas	Maximum Operating Pressure	145 psi
Brand	Transair	Product Style	Tee
Minimum Operating Temperature	-20 °C	Connection 3 Type	Male BSPT
Configuration	Pipe to Port	Division	Fluid System Connectors Division
Quantity per Box	2.0	Connection 1 Size	3/4 inch
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Temperature	194 °F
Seal Material	EPDM	Pipe Outside Diameter	3/4 inch
Connection 3 Size	3/4 inch	Connection 2 Size	3/4 inch
Division	Low Pressure Connectors Europe Division	Connection 1 Type	Pipe
Weight	0.23 kg	Assembly Time	0.17 Hours
Product Type	Compressed Aire Piping	Shape	Tee

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
