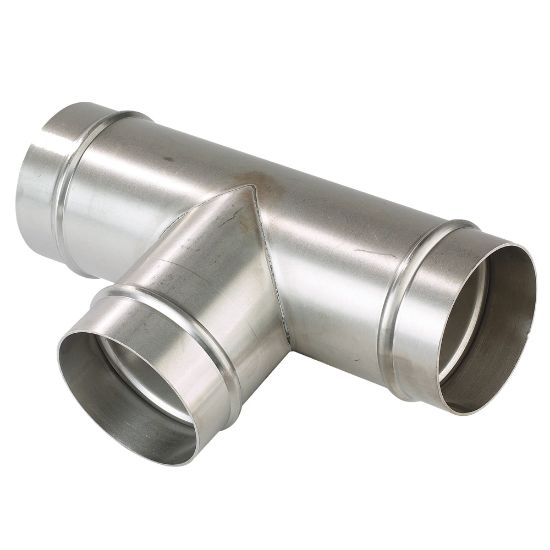

Picture of Transair® Fittings for Stainless Steel Pipe - RX04 L1 00*

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Fittings for Stainless Steel Pipe - RX04 L1 00*

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.
Availability:
Backordered
SKU RX04 L1 00*
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pipe O.D. 2 (inch)N/AConnection Thread Size (inch)n/a
Seal MaterialN/APipe O.D. (mm)76
ShapeEqual TeePipe O.D. 2 (mm)N/A
Pipe O.D. (inch)3Connection 1 Size3
Weight2.32Specifications MetEN 755.2
Connection 1 TypePipeConnection 2 Size76
BrandPARKERDivisionLow Pressure Connectors Europe Division
Maximum Operating Pressure232Body MaterialStainless Steel 304
Connection 2 TypePipeProduct TypeCompressed Air Piping
Maximum Operating Temperature185TechnologyPneumatics
Assembly Time0.02ConfigurationPipe to Pipe
Quantity per Box1.0For Fluid TypeAir
ApplicationCompressed AirMinimum Operating Temperature-4
Vacuum Pressure Rating1DivisionFluid System Connectors Division
ShapeEqual TeeIndustryGeneral Industrial
Product StyleUnion Fitting
