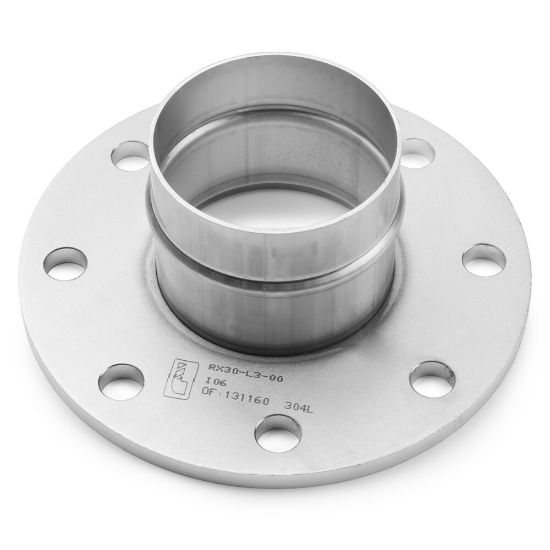

Picture of Transair® Fittings for Stainless Steel Pipe - RX30 L3 00*

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Fittings for Stainless Steel Pipe - RX30 L3 00*

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.
Availability:
Backordered
SKU RX30 L3 00*
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pipe O.D. (inch)4Pipe O.D. 2 (inch)N/A
Connection Thread Size (inch)n/aSeal MaterialN/A
ShapeDIN Flange AdapterPipe O.D. 2 (mm)N/A
Pipe O.D. (mm)101BrandPARKER
Connection 1 TypePipeDivisionLow Pressure Connectors Europe Division
Body MaterialStainless Steel 304Product TypeCompressed Air Piping
Weight2.680For Fluid TypeIndustrial Gas
TechnologyFluid & Gas HandlingConfigurationPort to Flange
Maximum Operating Temperature185Quantity per Box1.0
Minimum Operating Temperature-20Maximum Operating Pressure16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Connection 2 Size100Product StyleISO Flange Adapter
Assembly Time0.25ShapeStraight
DivisionFluid System Connectors DivisionConnection 1 Size100
Vacuum Pressure Rating1ApplicationVacuum
Connection 2 TypeFlange
