*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

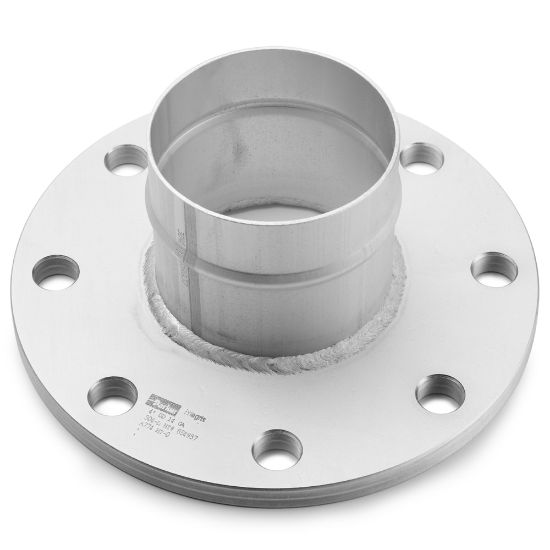

Transair® Fittings for Stainless Steel Pipe - RX31 L3 00*

Name: Transair® Fittings for Stainless Steel Pipe - RX31 L3 00*
SKU: RX31 L3 00*

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:

Backordered

SKU RX31 L3 00*

POR

Qty:

Products specifications

Attribute name	Attribute value
Shape	ANSI Flange Adapter	Pipe O.D. 2 (inch)	N/A
Pipe O.D. (inch)	4	Seal Material	N/A
Connection Thread Size (inch)	n/a	Pipe O.D. (mm)	101
Pipe O.D. 2 (mm)	N/A	Shape	Straight
Division	Fluid System Connectors Division	Assembly Time	0.25
Connection 2 Size	4	Connection 1 Size	100
Connection 2 Type	Flange	Connection 1 Type	Pipe
Product Style	ANSI Flange Adapter	Brand	PARKER
Product Type	Compressed Air Piping	Vacuum Pressure Rating	0.03
Body Material	Stainless Steel 304	Technology	Fluid & Gas Handling
Maximum Operating Temperature	185	For Fluid Type	Industrial Gas
Configuration	Port to Flange	Minimum Operating Temperature	-20
Division	Fluid System Connectors Division	Quantity per Box	1.0
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Weight	3.45
Application	Compressed Air

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
