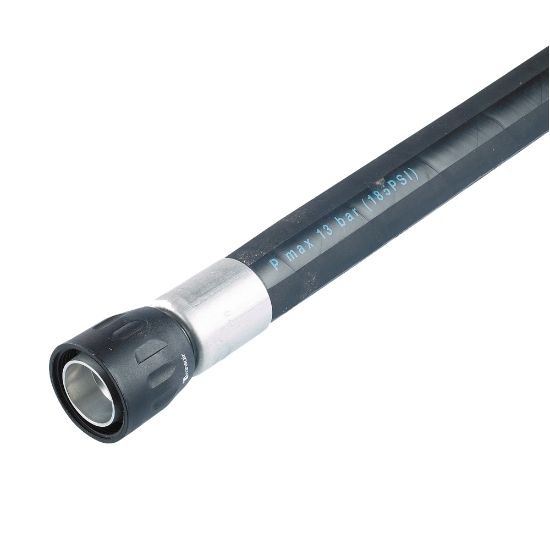

Transair® Flexible Hose for Aluminum Pipe - 1001E25 00 01

Name: Transair® Flexible Hose for Aluminum Pipe - 1001E25 00 01
SKU: 1001E25 00 01

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.

Availability:

Backordered

SKU 1001E25 00 01

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	0.57	Length (ft)	1ft 10in
Pipe O.D. (mm)	25	Pipe O.D. (inch)	1
Color	Black	Weight	0,794 kg
Application	In Plant Pneumatic	Specifications Met	ISO 8573 (Air Quality)
Division	Low Pressure Connectors Europe Division	Vacuum Pressure Rating	n/a Please consult us
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html	Maximum Operating Temperature	140 °F
Minimum Operating Temperature	-20 °C	Product Type	Pneumatic Hose
Brand	PARKER	Industry	General Industrial
Flow Rate	n/a	Technology	Fluid & Gas Handling
Inside Diameter	25 mm	Outside Diameter	1 inch
Connection Type	Male Thread	Shape	Straigth
Length	1' 10'' ft	Division	Low Pressure Connectors Europe Division
Assembly Time	0.04 Hours	Body Material	SBR (Hose & Coating)
Configuration	Port to Port	Product Style	Hose Assemblies
Connection Size	25 mm	Quantity per Box	1.0
Minimum Bend Radius	100 mm
