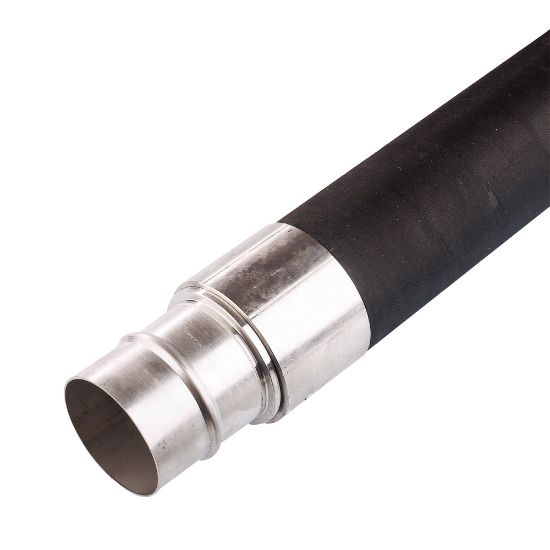

Transair® Flexible Hose for Aluminum Pipe - FP01 L3 03

Name: Transair® Flexible Hose for Aluminum Pipe - FP01 L3 03
SKU: FP01 L3 03

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.

Availability:

Backordered

SKU FP01 L3 03

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	3.00	Length (ft)	9ft 10in
Pipe O.D. (mm)	101	Pipe O.D. (inch)	4
Brand	PARKER	Minimum Operating Temperature	-4 °F
Division	Low Pressure Connectors Europe Division	Division	Fluid System Connectors Division
Industry	General Industrial	Application	In Plant Pneumatic
Quantity per Box	1.0	Flow Rate	n/a
Connection Type	Pipe	Color	Black
Specifications Met	EN 755.8	Vacuum Pressure Rating	n/a Please consult us
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html	Maximum Operating Temperature	60 °C
Product Type	Pneumatic Hose	Technology	Pneumatics
Shape	Straigth	Body Material	SBR (Hose & Coating)
Configuration	Pipe to Pipe	Product Style	Hose Assemblies
Outside Diameter	4 inch	Length	3,000 m
Weight	19,900 kg	Assembly Time	0.25 Hours
Connection Size	100 mm	Inside Diameter	100 mm
Minimum Bend Radius	18,000 inch
