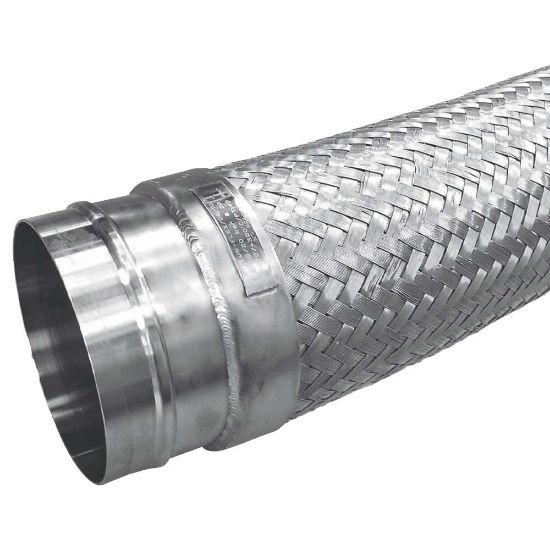

Transair® Flexible Hose for Aluminum Pipe - FX01 L8 02

Name: Transair® Flexible Hose for Aluminum Pipe - FX01 L8 02
SKU: FX01 L8 02

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.

Availability:

Backordered

SKU FX01 L8 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (inch)	6	Length (m)	3.2
Length (ft)	10ft 6in	Pipe O.D. (mm)	168
Configuration	Pipe to Pipe	Color	Silver
Product Type	Pneumatic Hose	Brand	Transair
Maximum Operating Pressure	13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html	Flow Rate	n/a
Minimum Operating Temperature	-20 °C	Division	Fluid System Connectors Division
Quantity per Box	1.0	Division	Low Pressure Connectors Europe Division
Connection Size	168 mm	Vacuum Pressure Rating	n/a Please consult us
Length	10' 6'' ft	Connection Type	Pipe
Shape	Straigth	Inside Diameter	150 mm
Technology	Pneumatics	Maximum Operating Temperature	60 °C
Weight	42,000 kg	Industry	General Industrial
Minimum Bend Radius	35,000 inch	Body Material	Nitrile Butadiene Rubber (NBR)/Styrene Butadiene Rubber (SBR), Black (Hose & Coating)
Specifications Met	EN 573.3	Assembly Time	0.1 Hours
Application	In Plant Pneumatic	Outside Diameter	168 mm
Product Style	Hose Assemblies
