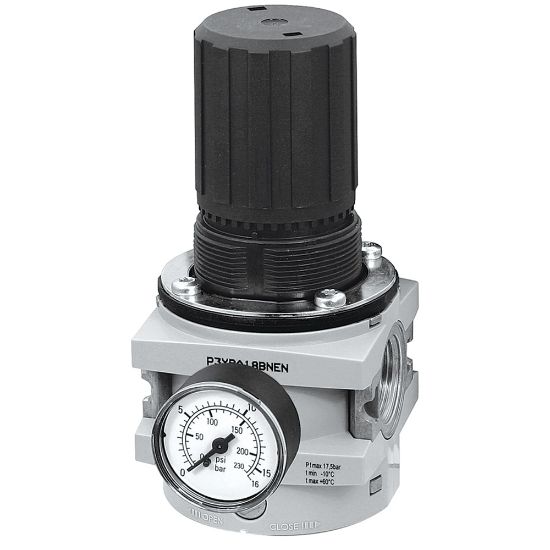

Transair Pressure Regulators - FP3YRA96BNFN

Name: Transair Pressure Regulators - FP3YRA96BNFN
SKU: FP3YRA96BNFN

Parker's line of pressure regulators offer a quick response to regulating pressure. Each pressure regulator comes equipped with an easy to read gauge for accurate pressure control.

Availability:

Backordered

SKU FP3YRA96BNFN

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate (dm3/s)	321	Port Thread Size (Inch)	3/4
Flow Rate (SCFM)	680	Diaphragm Material	n/a
Body Material	Aluminum	Minimum Operating Temperature	-40 °F
Division	Fluid System Connectors Division	Maximum Operating Pressure	17.5 bar
Adjustment Screw Material	Polyamide (PA) Glass-filled	Seal Material	Nitrile / NBR
Bonnet Material	Polyamide (PA) Glass-filled	Screw Material	n/a
Cap Material	ABS	Spring Material	n/a
Maximum Operating Temperature	60 °C	Valve Material	Brass / NBR
Nut Material	n/a	Maximum Relief Pressure	145 psi
