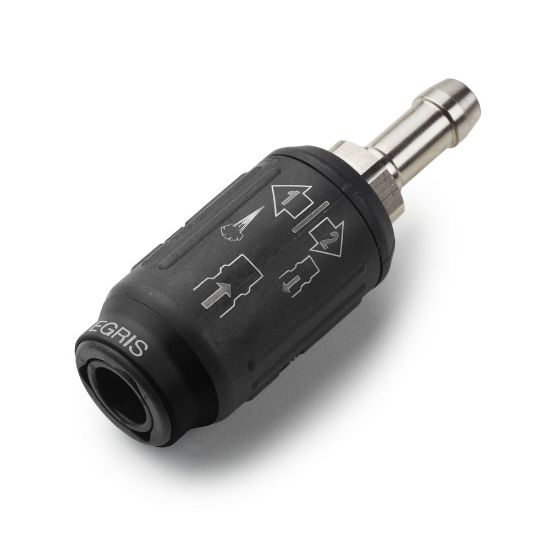

Transair® Safety Couplers and Plugs - CP21 U1 08

Name: Transair® Safety Couplers and Plugs - CP21 U1 08
SKU: CP21 U1 08

Transair® safety air couplers are designed for frequent connection and disconnection. The two-turn release system vents the downstream pressure, preventing serious injury.

Availability:

Backordered

SKU CP21 U1 08

POR

Qty:

Products specifications

Attribute name	Attribute value
Body Size	1/4 inch	Connection Size	5/16 INCH\|8 MM
Industry Standards	ISO 4414, series B	Coupling Half	Coupler with Hosetail
Maximum Operating Pressure	232 psi	Application	Industrial Gas
Weight	0.07 kg	Brand	Transair
Maximum Operating Temperature	60 °C	Body Material	Polymer HR / Zamac
Minimum Operating Temperature	-20 °C	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Flow Rate	47 SCFM
Assembly Time	0.15 Hours	Quantity per Box	6
