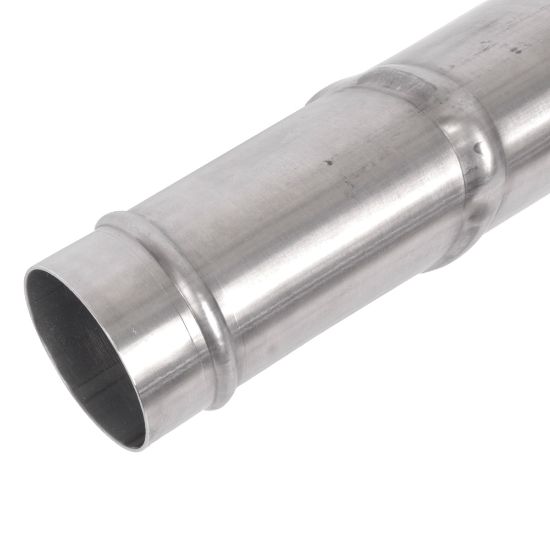

Transair® Stainless Steel Pipe - TX03 L1 00

Name: Transair® Stainless Steel Pipe - TX03 L1 00
SKU: TX03 L1 00

Transair stainless steel pipe offers strong chemical compatability for washdown and high purity applications. Ideal for compressed air, vacuum, industrial/inert gas, process water, and chemical transfer applications.

Availability:

Backordered

SKU TX03 L1 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	3	Length (ft)	10
Pipe O.D. (inch)	3	Pipe O.D. (mm)	76.1
Division	Low Pressure Connectors Europe Division	Application	Vacuum
Specifications Met	ASTM A249	Quantity per Box	1
Vacuum Pressure Rating	0.03 inch-Hg	Brand	Transair
Maximum Operating Pressure	10 bar	Minimum Operating Temperature	-20 °C
Weight	8.857 kg	Product Type	Stainless Steel Pipe
Division	Fluid System Connectors Division	Materials of Construction	Stainless Steel 304
Length	10 ft	Pipe Outside Diameter	3 inch
Maximum Operating Temperature	194 °F	Assembly Time	0.2 Hours

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
