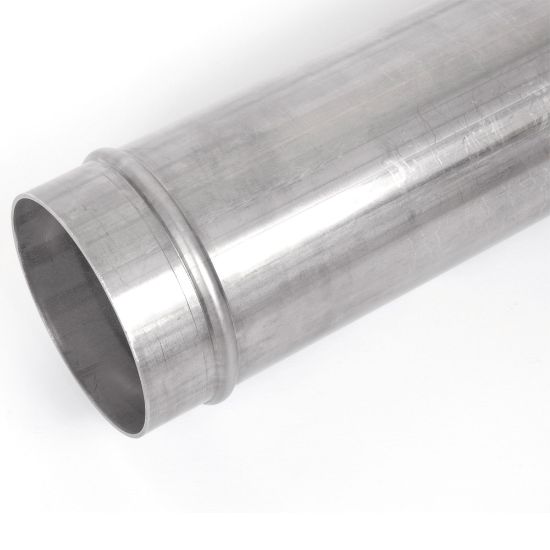

Transair® Stainless Steel Pipe - TX03 L3 00

Name: Transair® Stainless Steel Pipe - TX03 L3 00
SKU: TX03 L3 00

Transair stainless steel pipe offers strong chemical compatability for washdown and high purity applications. Ideal for compressed air, vacuum, industrial/inert gas, process water, and chemical transfer applications.

Availability:

Backordered

SKU TX03 L3 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	3	Pipe O.D. (inch)	4
Length (ft)	10	Pipe O.D. (mm)	101.6
Specifications Met	AISI 304 / 1. 4301	Length	3 m
Weight	14.4 kg	Division	Fluid System Connectors Division
Assembly Time	0.2 Hours	Product Type	Stainless Steel Pipe
Application	Vacuum	Minimum Operating Temperature	-4 °F
Materials of Construction	Stainless Steel 304	Maximum Operating Pressure	145 psi
Vacuum Pressure Rating	1 mbar	Brand	PARKER
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	90 °C	Pipe Outside Diameter	4 inch

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
