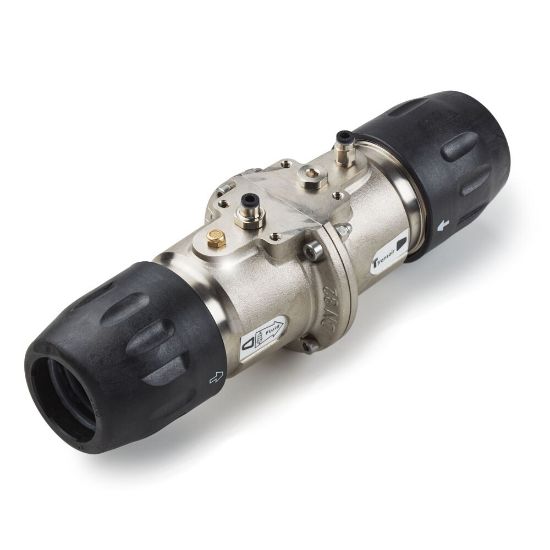

Transair® Valves for Aluminum Pipe - 4230 00 40

Name: Transair® Valves for Aluminum Pipe - 4230 00 40
SKU: 4230 00 40

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:

Backordered

SKU 4230 00 40

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	40	Pipe O.D. (inch)	1-1/2
Connection Thread Size (inch)	n/a	Vented	No
Silicone Free	Yes	Style	Remote Shut-Off Valve
Brand	Transair	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20 °C	Actuation Type	Pneumatic
Division	Fluid System Connectors Division	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	In Plant Pneumatic
Seal Material	NBR	Specifications Met	CE
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	185 °F	Assembly Time	0.04 Hours
Configuration	Pipe to Pipe	Connection 1 Type	Pipe
Connection 2 Type	Pipe	For Fluid Type	Inert Gases
Function	2-Way	Body Material	Technical Polymer
Product Type	Flow Control Valve	Flow Direction	Bidirectional
Orifice Size	40 mm	Mounting Type	In-line/Pipe
Response Time	n/a	Seat Material	PTFE
Connection 1 Size	40 mm	Weight	1.814 kg
Options	Standard	Product Style	Butterfly Valve
Operation Type	Pneumatic	Quantity per Box	0
Connection 2 Size	40 mm
