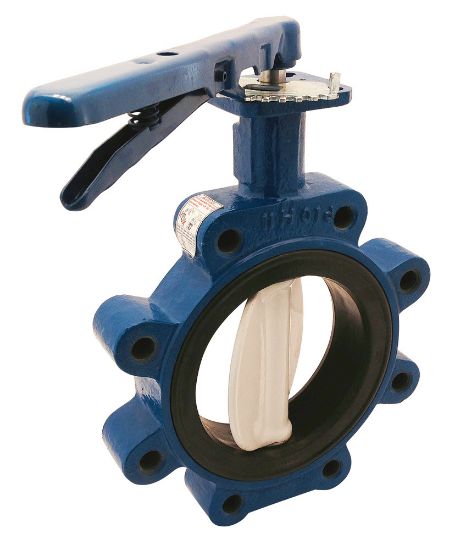

Transair® Valves for Aluminum Pipe - VR02 L3 00US

Name: Transair® Valves for Aluminum Pipe - VR02 L3 00US
SKU: VR02 L3 00US

Transair® Valves are designed for quick and easy integration into a Transair compressed air piping system. Placing valves at strategic points allows for easy system isolation.

Availability:

Backordered

SKU VR02 L3 00US

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection Thread Size (inch)	n/a	Vented	No
Silicone Free	Yes	Pipe O.D. (mm)	101
Pipe O.D. (inch)	4	Style	Butterfly Valve
Brand	PARKER	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20 °C	Maximum Operating Temperature	85 °C
Division	Fluid System Connectors Division	Industry	General Industrial
Application	In Plant Pneumatic	Mounting Type	Flanged
Seal Material	NBR	Specifications Met	EN 755.8
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Technology	Pneumatics	Quantity per Box	1
Function	2-Way	For Fluid Type	Compressed Air
Product Type	Flow Control Valve	Flow Direction	Bidirectional
Actuation Type	Manual	Options	Lockable
Response Time	n/a	Operation Type	Manual
Product Style	Butterfly Valve	Assembly Time	0.2 Hours
Connection 1 Size	100 mm	Configuration	Pipe to Flange
Connection 2 Size	100 mm	Connection 2 Type	Flange
Orifice Size	100 mm	Body Material	Treated Cast Iron
Seat Material	NBR	Weight	16.400 lb
Connection 1 Type	Flange
