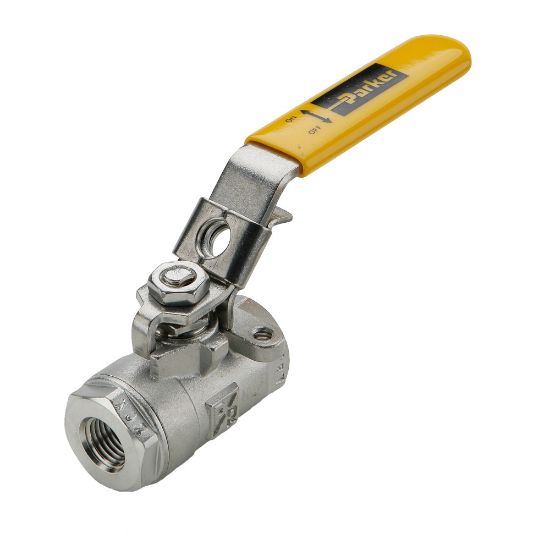

Picture of Transair® Valves for Stainless Steel Pipe - VP502SS-12*

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Valves for Stainless Steel Pipe - VP502SS-12*

Transair Valves are designed for quick and easy integration into a Transair stainless steel system. Placing valves at strategic points allows for easy localized isolation.
Availability:
Backordered
SKU VP502SS-12*
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
StyleBall ValvePipe O.D. (mm)N/A
Seal MaterialPTFEPipe O.D. (inch)N/A
Connection Thread Size (inch)3/4Body MaterialStainless Steel
ConfigurationPort to PortApplicationVacuum
Connection 2 TypeFemale NPTAssembly Time0.10
BrandTransairWeight2.78
Seal MaterialPTFEDivisionFluid System Connectors Division
Body MaterialStainless SteelDivisionLow Pressure Connectors Europe Division
Connection 1 TypeFemale NPTQuantity per Box5.0
Connection 2 Size3/4Minimum Operating Temperature-4
Vacuum Pressure Rating1Product TypeBall Valve
Maximum Operating Pressure145Connection 1 Size3/4
Maximum Operating Temperature194
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides
