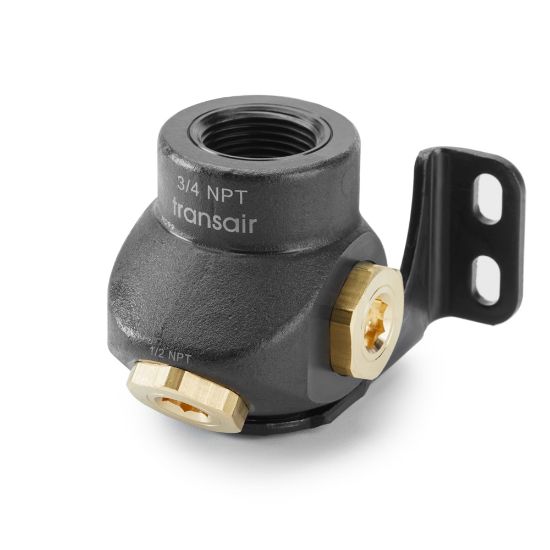

Transair® Wall Brackets for Aluminum Pipe - 6635 27 21

Name: Transair® Wall Brackets for Aluminum Pipe - 6635 27 21
SKU: 6635 27 21

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:

Backordered

SKU 6635 27 21

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	N/A	Pipe O.D. (inch)	N/A
Connection Thread Size (inch)	3/4	Shape	Threaded 3 Port Wall Bracket BSP
Connection Type	Female Threaded BSP	Brand	Transair
Division	Low Pressure Connectors Europe Division	Division	Fluid System Connectors Division
Assembly Time	0.15 Hours	Minimum Operating Temperature	-20 °C
Shape	Straight	Assembly	n/a
Industry	General Industrial	Technology	Fluid & Gas Handling
Seal Material	NBR	Application	Inert Gases
Specifications Met	EN 573.3	Maximum Operating Temperature	185 °F
Configuration	Port to Port	For Fluid Type	Industrial Gas
Quantity per Box	1	Connection 2 Type	Female BSPP
Body Material	Treated Brass	Weight	1,653 lb
Product Type	Wall Brackets	Connection 1 Size	G 3/4 inch
Connection 1 Type	Female BSPP	Connection 2 Size	G 1/2 inch
Maximum Operating Pressure	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	Connection 3 Size	G 1/4 inch
Connection 3 Type	Female BSPP
