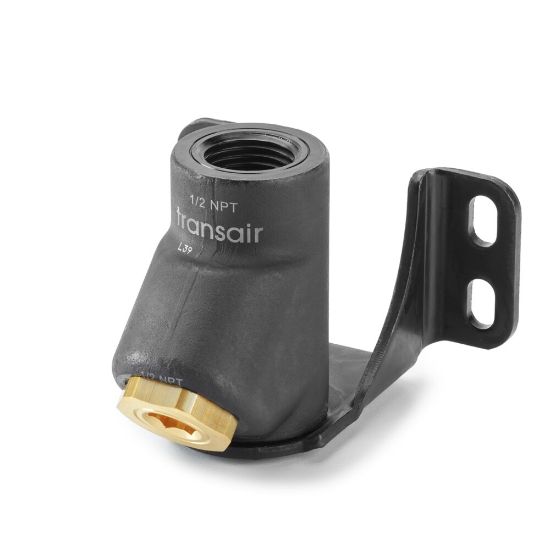

Picture of Transair® Wall Brackets for Aluminum Pipe - 6642 22 22

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Wall Brackets for Aluminum Pipe - 6642 22 22

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.
Availability:
Backordered
SKU 6642 22 22
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pipe O.D. (mm)N/APipe O.D. (inch)N/A
Connection Thread Size (inch)1/2ShapeThreaded 1 Port 45° Wall Bracket
Connection TypeFemale Threaded NPTBrandTransair
DivisionFluid System Connectors DivisionAssembly Time0.15 Hours
Minimum Operating Temperature-20 °CShapeStraight
Maximum Operating Temperature85 °CAssemblyn/a
DivisionFluid System Connectors DivisionIndustryGeneral Industrial
Connection 2 TypeFemale NPTSeal MaterialNBR
ApplicationInert GasesSpecifications MetCE
TechnologyPneumaticsConfigurationPort to Port
For Fluid TypeAirQuantity per Box1
Connection 1 TypeFemale NPTBody MaterialTreated Brass
Weight1,060 lbProduct TypeWall Brackets
Connection 1 SizeNPT 1/2 inchConnection 2 SizeNPT 1/2 inch
Maximum Operating Pressure232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/cConnection 3 SizeNPT 1/4 inch
Connection 3 TypeFemale NPTPipe Outside Diameter25|16/5 mm
