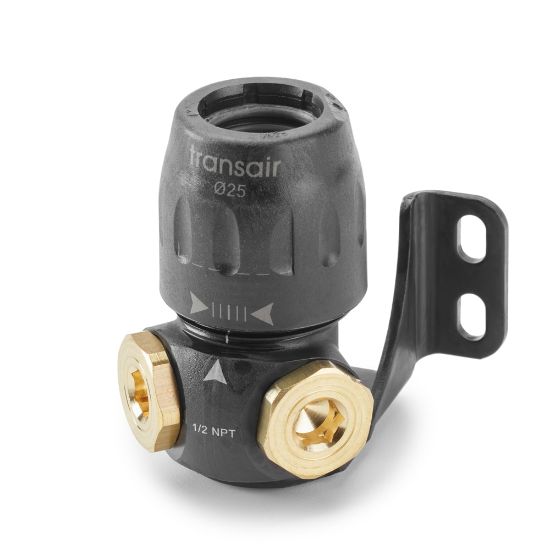

Transair® Wall Brackets for Aluminum Pipe - 6681 17 21

Name: Transair® Wall Brackets for Aluminum Pipe - 6681 17 21
SKU: 6681 17 21

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:

Backordered

SKU 6681 17 21

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	16.5	Pipe O.D. (inch)	1/2
Connection Thread Size (inch)	n/a	Shape	2 Port 90° Wall Bracket
Brand	PARKER	Division	Low Pressure Connectors Europe Division
Assembly Time	0.15 Hours	Minimum Operating Temperature	-20 °C
Shape	Straight	Division	Low Pressure Connectors Europe Division
Assembly	n/a	Industry	General Industrial
Technology	Fluid & Gas Handling	Seal Material	NBR
Application	Inert Gases	Specifications Met	ASME B31.1 - 31.9
Maximum Operating Temperature	185 °F	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Maximum Operating Pressure	16 bar	Connection 2 Type	Female BSPP
Body Material	Treated Brass	Connection 1 Size	1/2 inch
Configuration	Pipe to Port	Product Type	Wall Brackets
Connection 2 Size	G 1/2 inch	Connection 3 Size	G 1/4 inch
Connection 3 Type	Female BSPP	Weight	0,930 lb
