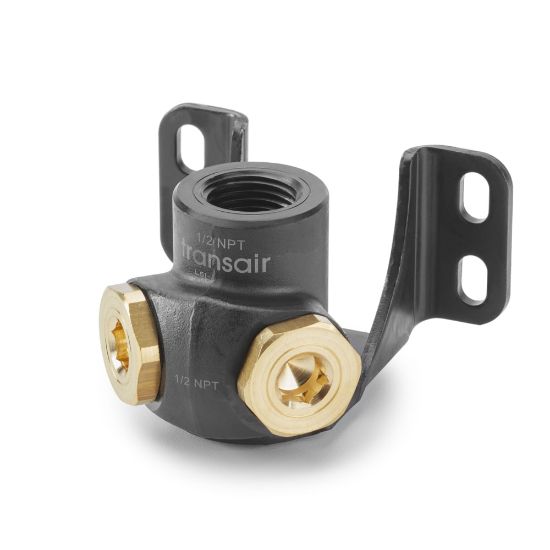

Transair® Wall Brackets for Aluminum Pipe - 6688 22 22

Name: Transair® Wall Brackets for Aluminum Pipe - 6688 22 22
SKU: 6688 22 22

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:

Backordered

SKU 6688 22 22

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	N/A	Pipe O.D. (inch)	N/A
Connection Thread Size (inch)	1/2	Connection Type	Female Threaded NPT
Shape	Threaded 2 Port 90° Wall Bracket	Brand	PARKER
Minimum Operating Temperature	-20 °C	Shape	Straight
Division	Low Pressure Connectors Europe Division	Assembly	n/a
Division	Fluid System Connectors Division	Industry	General Industrial
Technology	Fluid & Gas Handling	Connection 2 Type	Female NPT
Seal Material	NBR	Application	Compressed Air
Specifications Met	CE	Maximum Operating Temperature	185 °F
Configuration	Port to Port	For Fluid Type	Industrial Gas
Quantity per Box	1	Maximum Operating Pressure	16 bar
Connection 1 Type	Female NPT	Body Material	Treated Brass
Assembly Time	0.2 Hours	Product Type	Wall Brackets
Connection 1 Size	NPT 1/2 inch	Connection 2 Size	NPT 1/2 inch
Connection 3 Size	NPT 1/4 inch	Connection 3 Type	Female NPT
Weight	0,930 lb	Pipe Outside Diameter	1"\|1/2" inch
