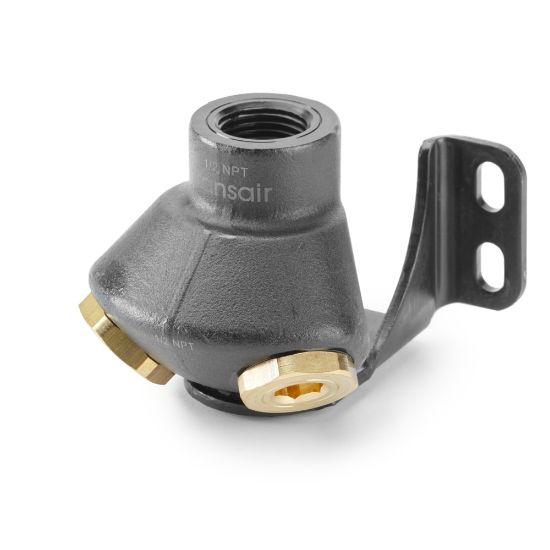

Transair® Wall Brackets for Aluminum Pipe - 6691 22 22

Name: Transair® Wall Brackets for Aluminum Pipe - 6691 22 22
SKU: 6691 22 22

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:

Backordered

SKU 6691 22 22

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	N/A	Pipe O.D. (inch)	N/A
Connection Thread Size (inch)	1/2	Connection Type	Female Threaded NPT
Shape	Threaded 2 Port 45° Wall Bracket	Brand	PARKER
Division	Fluid System Connectors Division	Assembly Time	0.15 Hours
Minimum Operating Temperature	-4 °F	Shape	Straight
Assembly	n/a	Division	Fluid System Connectors Division
Industry	General Industrial	Technology	Fluid & Gas Handling
Connection 2 Type	Female NPT	Seal Material	NBR
Application	Compressed Air	Specifications Met	CE
Maximum Operating Temperature	185 °F	Configuration	Port to Port
For Fluid Type	Air	Quantity per Box	1
Maximum Operating Pressure	16 bar	Connection 1 Type	Female NPT
Body Material	Treated Brass	Product Type	Wall Brackets
Connection 1 Size	NPT 1/2 inch	Connection 2 Size	NPT 1/2 inch
Connection 3 Size	NPT 1/4 inch	Connection 3 Type	Female NPT
Pipe Outside Diameter	25\|16/5 mm	Weight	0,630 kg
