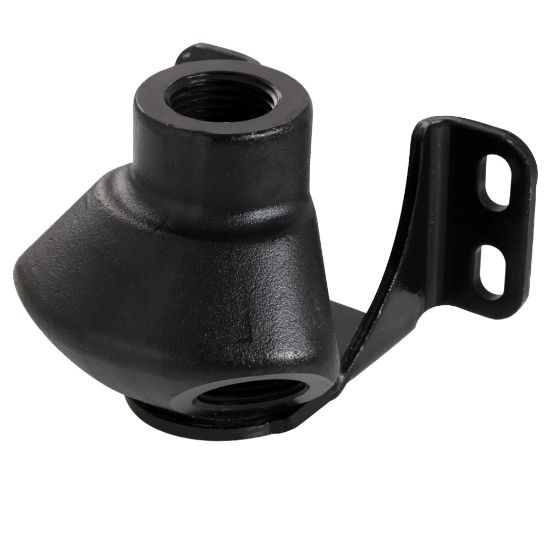

Transair® Wall Brackets for Stainless Steel Pipe - 6690 21 21

Name: Transair® Wall Brackets for Stainless Steel Pipe - 6690 21 21
SKU: 6690 21 21

Transair wall brackets for stainless steel pipe are designed for quick connection of tools and machinery to the supply line.

Availability:

Backordered

SKU 6690 21 21

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	N/A	Pipe O.D. (inch)	N/A
Connection Thread Size (inch)	1/2	Connection Type	Female Threaded BSP
Shape	2 Port 45° Threaded Wall Bracket, BSP Parallel G1/2	Brand	PARKER
Division	Low Pressure Connectors Europe Division	Shape	Straight
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85
Assembly	n/a	Industry	General Industrial
Assembly Time	0.15	Seal Material	NBR
Minimum Operating Temperature	-20	Application	Compressed Air
Specifications Met	EN 755.2	Technology	Pneumatics
Configuration	Port to Port	For Fluid Type	Air
Quantity per Box	1	Connection 2 Type	Female BSPP
Body Material	Treated Brass	Product Type	Wall Brackets
Connection 1 Size	G 1/2	Connection 1 Type	Female BSPP
Connection 2 Size	G 1/2	Maximum Operating Pressure	16
Connection 3 Size	G 1/4	Connection 3 Type	Female BSPP
Pipe Outside Diameter	25\|16/5	Weight	1,481

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
