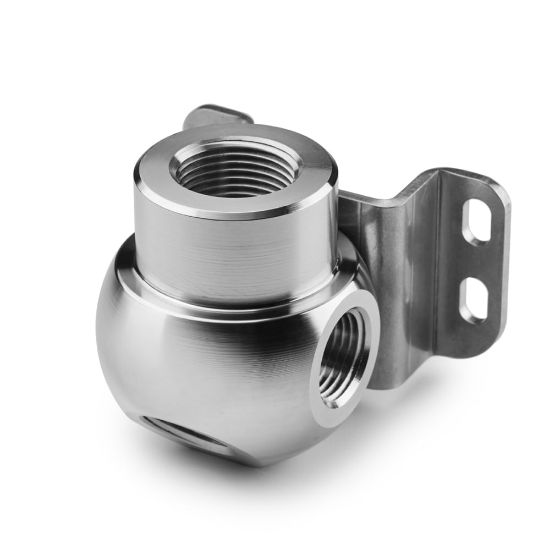

Transair® Wall Brackets for Stainless Steel Pipe - RF36 06N04

Name: Transair® Wall Brackets for Stainless Steel Pipe - RF36 06N04
SKU: RF36 06N04

Transair wall brackets for stainless steel pipe are designed for quick connection of tools and machinery to the supply line.

Availability:

Backordered

SKU RF36 06N04

POR

Qty:

Products specifications

Attribute name	Attribute value
Shape	316L Stainless 3 Port Threaded Wall Bracket	Connection Type	Female Threaded NPT
Specifications Met	TUV	For Fluid Type	Air
Weight	1.64 lb	Connection 1 Size	3/4 inch
Maximum Operating Temperature	194 °F	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Quantity per Box	1	Connection 2 Type	Female NPT
Configuration	Port to Port	Connection 2 Size	1/2 inch
Connection 3 Size	1/4 inch	Pipe Outside Diameter	22 mm
Product Type	Wall Brackets	Assembly	n/a
Assembly Time	0.17 Hours	Brand	Transair
Connection 3 Type	Female NPT	Technology	Pneumatics
Body Material	Treated Brass	Application	Process Water
Seal Material	NBR	Maximum Operating Pressure	10 bar
Division	Fluid System Connectors Division	Division	Low Pressure Connectors Europe Division
Connection 1 Type	Female NPT

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)
