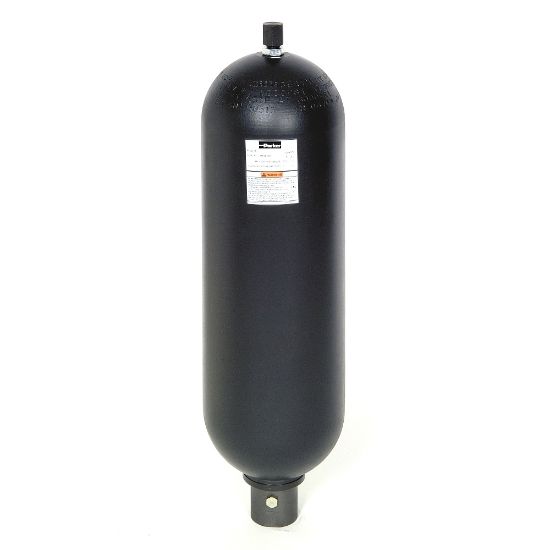

Transfer Barrier Accumulators - BT Series - (Americas) - BT02B3TF04A1

Transfer Barrier accumulators provide fluid separation where two different media must transfer pressure between each other without mixing. Also used as an accumulator in series with gas bottles where size constraints exist.
Availability:
Backordered
SKU BT02B3TF04A1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Outlet Port Connection TypeCode 61 FlangeFluid TypeOil Service
Maximum Operating Pressure (psi)3,000 psiVolume (Gallons)2.5 gallons
Elastomer MaterialHydrinOutlet Port Size (inch)2"
Inlet Port Connection TypeSAEInlet Port Size (inch)#12 ( 1-1/16"-12 )
Volume9.45Overall Length21.37
DivisionAccumulator and Cooler DivisionBody MaterialChrome-molybdenum Alloy Steel
RepairableBottom RepairableSpecifications MetASME
Maximum Operating Pressure206.8Diameter9.06
