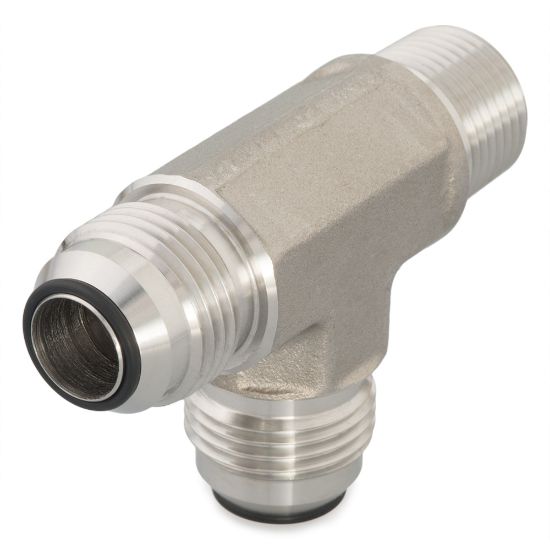

Picture of Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters - 8 RTXO-SS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters - 8 RTXO-SS

Parker's Triple-Lok 2 soft seal 37° flare JIC tube fittings and adapters offer the unique and added benefit of an elastomeric seal in the nose, creating superior sealing performance in metal to metal seal applications.
Availability:
Backordered
SKU 8 RTXO-SS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ShapeTeeConnection 2 Thread Size (inch)3/8-18
Connection 2 StyleMale NPT/NPTFConnection 2 Tube O.D. (inch)na
Connection 1 StyleMale 37° Flare with O-ring Seal on NoseConnection 1 Tube O.D. (inch)1/2
DivisionTube Fittings DivisionBody MaterialStainless Steel
Maximum Dynamic Pressure6000 psiO-Ring Material90 Durometer Nitrile
Specifications MetSAE J514Connection TypeSoft Seal Stainless Steel 37° Flare
Connection 3 Tube Outside Diameter1/2 inchConnection 3 SizeMale 37° Flare with O-ring Seal on Nose
