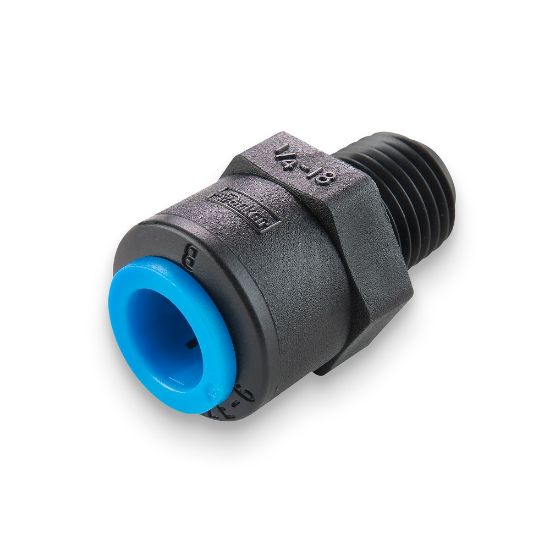

Picture of TrueSeal Acetal & Kynar Check Valves - Push to Connect - FB6MCVC4-HBLU-15

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

TrueSeal Acetal & Kynar Check Valves - Push to Connect - FB6MCVC4-HBLU-15

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.
Availability:
Backordered
SKU FB6MCVC4-HBLU-15
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Collet MaterialBlueConnection 1 Tube Outside Diameter3/8" (O.D.)
Cracking Pressure1.5 PsiConfigurationTube to NPTF
Body MaterialKynar®Connection 2 Thread Size1/4"
Body MaterialPVDF (Kynar)ConfigurationTube to Tube
Gripping Ring MaterialStainless SteelMaximum Operating Pressure300
DivisionFluid System Connectors DivisionConnection Typen/a
ShapeIn-LineConnection 2 TypeNPTF Thread
Maximum Operating Temperature250ApplicationPotable Water
Cracking Pressure1.5Connection 2 Size1/4 inch Tube O.D.
Seal MaterialFluorocarbonValve ConfigurationOne Way
Minimum Operating Temperature-17.8For Fluid TypeWater
Connection 1 TypePush-to-ConnectConnection 1 Size3/8 inch Tube O.D.
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
