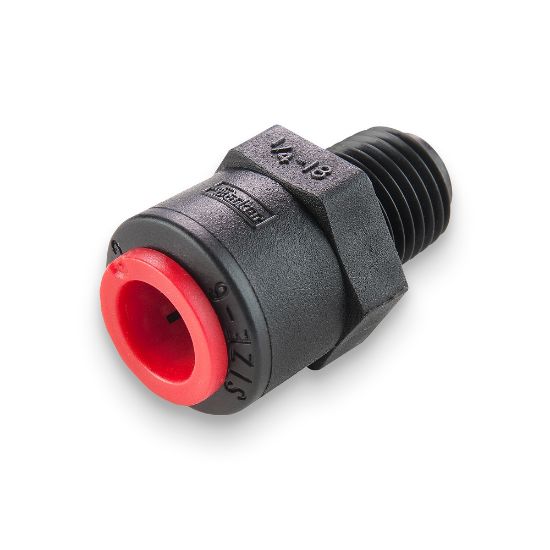

TrueSeal Acetal & Kynar Check Valves - Push to Connect - FB6MCVC4-HRED-30

Name: TrueSeal Acetal & Kynar Check Valves - Push to Connect - FB6MCVC4-HRED-30
SKU: FB6MCVC4-HRED-30

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Availability:

Backordered

SKU FB6MCVC4-HRED-30

POR

Qty:

Products specifications

Attribute name	Attribute value
Configuration	Tube to NPTF	Body Material	Kynar®
Connection 2 Thread Size	1/4"	Connection 1 Tube Outside Diameter	3/8" (O.D.)
Collet Material	Red	Cracking Pressure	3 Psi
Division	Fluid System Connectors Division	Connection Type	n/a
Body Material	PVDF (Kynar)	Minimum Operating Temperature	0
Connection 2 Size	n/a	Cracking Pressure	3.0
Connection 1 Size	n/a	Maximum Operating Pressure	300
Seal Material	Fluorocarbon	Gripping Ring Material	Stainless Steel
For Fluid Type	Water	Connection 1 Type	Push-to-Connect
Application	Potable Water	Maximum Operating Temperature	250
Shape	In-Line	Connection 2 Type	NPTF Thread
Valve Configuration	One Way	Configuration	Tube to Tube

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Water & Beverage Products Quick Reference Guide - Water-QRG (PDF)
