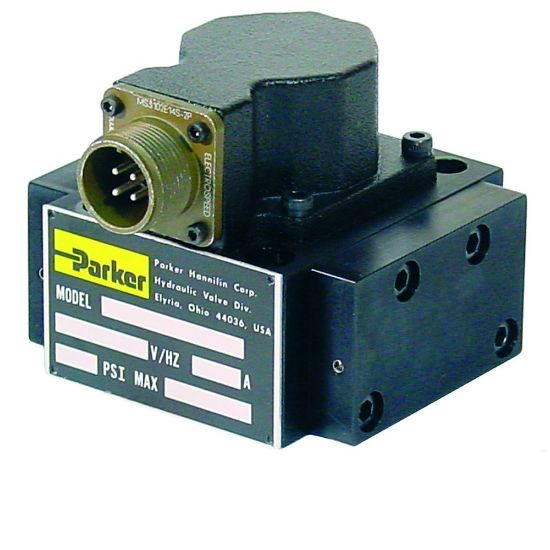

Picture of Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series - SE20HAAAANA16.5

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series - SE20HAAAANA16.5

Parker’s SE20 series valve is a two stage, 4-way, flapper and nozzle style servovalve.
Availability:
Backordered
SKU SE20HAAAANA16.5
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
SizeISO 10372 standard 22.23 mmFlow Rate (gpm)16.5
Maximum Operating Pressure4500 PSIPilot Port TypeInternal
Minimum Operating Temperature-4DivisionHydraulic Valve Systems Division
Maximum Operating Pressure315Body MaterialAluminum
Signal InputHighAdditional OptionsConsult catalog for additional features
Weight2.2Actuation TypeHydraulic Pressure
Maximum Flow Rate63Seal MaterialNitrile
Connection TypePort C1, (+) signal to A, CResistance40 Ohms; 60 mA (Parallel); 30mA (Series)
Maximum Operating Temperature+140Valve TypeServovalve
